DX 350 Pro
| Model Name/Number | DXC350 |
| Size | 795 × 445 × 530 mm |
| Software Free Plugin | CorelDRAW X4–2018 / Adobe Illustrator CS6–2017 |
| Optional Software | Signcut |
| Max Sheet Size | 330 × 488 mm |
| Max Cutting Surface | 325 × 483 mm |
| Minimum Media Width | 210 × 297 mm |
| Max Media Height | ≤ 0.5mm or Around 500 gsm |
| Packing Size | 795 × 445 × 530 mm |
| Packing Gross Weight | 46 kg |
| Max Force | 2000 g |
| Number of Heads | 1 |
| Auto Contour Cut | CCD Camera |
| CorelDRAW & AI Directly Compatible | Yes |
| Power Supply (V/Hz) | 220/50 |
| Motor Type | Micro Stepper Motor |
| Processor Memory | NA |
| Cutting Precision | ± 0.01 mm |
| Repeat Precision | 0.082 mm |
| Maximum Moving Speed | 800 mm/s |
| Maximum Cutting Speed | 800 mm/s |
| Connector Interface | USB Flash / WiFi / USB Cable / WLAN |
| Power Consumption | < 100W |
| Working Environment | +5°C – +35°C |
Extended Product Description (Long Version)

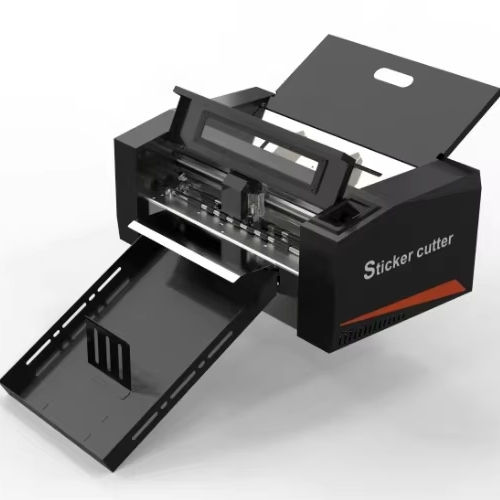

The DXC350 Automatic Die-Cutting Machine is a versatile and precision-engineered solution designed to meet the demands of modern print shops, label manufacturers, craft studios, and small-scale packaging units. Built with a robust Micro Stepper Motor, the machine maintains exceptional accuracy with a cutting precision of ±0.01 mm, making it highly dependable for intricate designs and contour-based die-cutting work.
With a maximum sheet size of 330 × 488 mm and a working cutting surface of 325 × 483 mm, the DXC350 offers ample flexibility for various applications such as stickers, vinyl sheets, labels, business cards, custom packaging prototypes, and specialty prints. The built-in CCD camera system allows flawless contour detection, ensuring that every cut aligns perfectly with printed graphics—even at high speeds.
Seamlessly compatible with CorelDRAW (X4–2018) and Adobe Illustrator (CS6–2017), the machine enables direct design-to-cut workflow, making it extremely user-friendly for operators. Supporting USB Flash, WLAN, WiFi, and USB cable connectivity, the DXC350 fits smoothly into any production setup.
Its compact structure, low power consumption (below 100W), and 46 kg lightweight build make it ideal for businesses that need high-quality cutting without large industrial installations. Whether you’re producing personalized sheets or batch-based commercial orders, the DXC350 delivers outstanding consistency, efficiency, and value.
